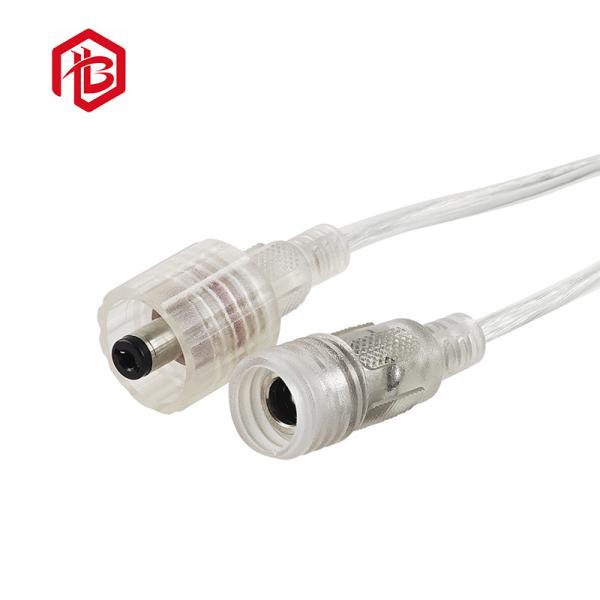

DC5521 Male and Female Transparent Butt Socket Car LED Waterproof Connector
Cable length:
any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication andwetting length (normal is 3 cm and 3 mm), the other orders are required to submit.
| Protection Level: | IP65 | Connecting Model: | Date Transfer Connector |
| Pin: | 2 3 4 pin | Current Rating: | 6 A |
| Model: | 5521 DC Plug | Voltage Rating: | 110 V |
| Brand | Bett | Gender | Male Female |
Description of 5521 DC Plug
| Operation Parameters |
| Voltage Rating | 110 VAC max |
| Current Rating | 6A max |
| Min Wire Size OD | 3.0 mm ~ 6 mm |
| Max Wire Size OD | 6 mm ~ 10 mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 0.5mm2 |
| Current rating | 1-50A |
| Working temperature | - 40 ~ 105 ° C |
Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP65 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, CCC, CE, RoHS approved
Main characteristics
- Sealed against dust and fluid (IP65)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
Applicaiton of Bett E27 Connectors
- Communications Application
- inventory product coding
- Solar System
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
FAQ
1. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
2. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
3. Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
4. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
Tips:
1. Proofing: Customers provide samples or provide specifications, and we will make samples according to your samples for confirmation.
2. Production: Our sample production - the customer confirms that the sample is passed - the customer places an order - our company arranges production
3. Delivery: The normal delivery time is 5 to 10 days as agreed by both parties.
4. After-sales: If there is any quality or any other problem with the product, please give us feedback in time, and we will deal with it in time and serve you sincerely.
5. All products are customized according to customer requirements, quality assurance, samples are welcome to be customized.
